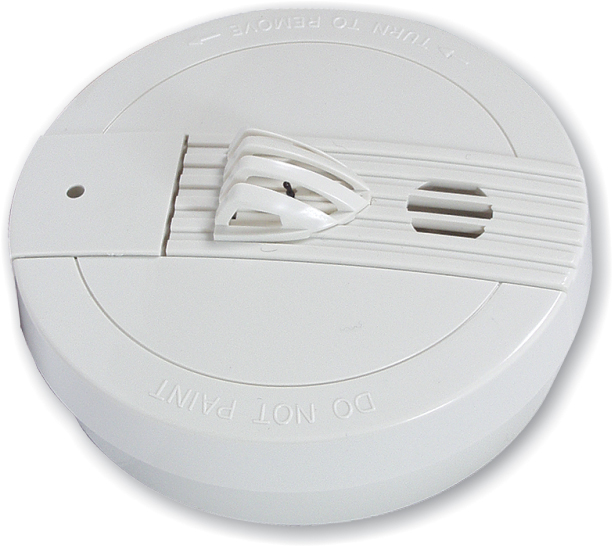

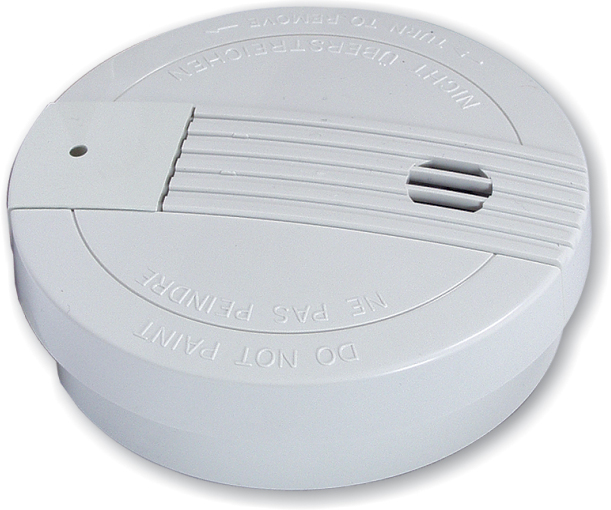

Advanced Home Safety Solutions SD-728 series optical smoke detectors and multisensors

SD-728 series is setting a new standard for reliability, performance and easy maintenance, using Advanced Photoelectric smoke sensing technology. These optical smoke detectors and multisensors are well suited to effectively respond to a wide spectrum of fires including slow smoldering fires, often generated in households. The SD-728-H series multisensors use a smoke sensor in conjunction with a fixed temperature heat sensor to further extend its capabilities as a smoke detector. The detectors are loaded with extra features and are available in a wide range of models. SD-728 series is AC110/220/230V or 9V battery powered. Designed for residential and professional use.

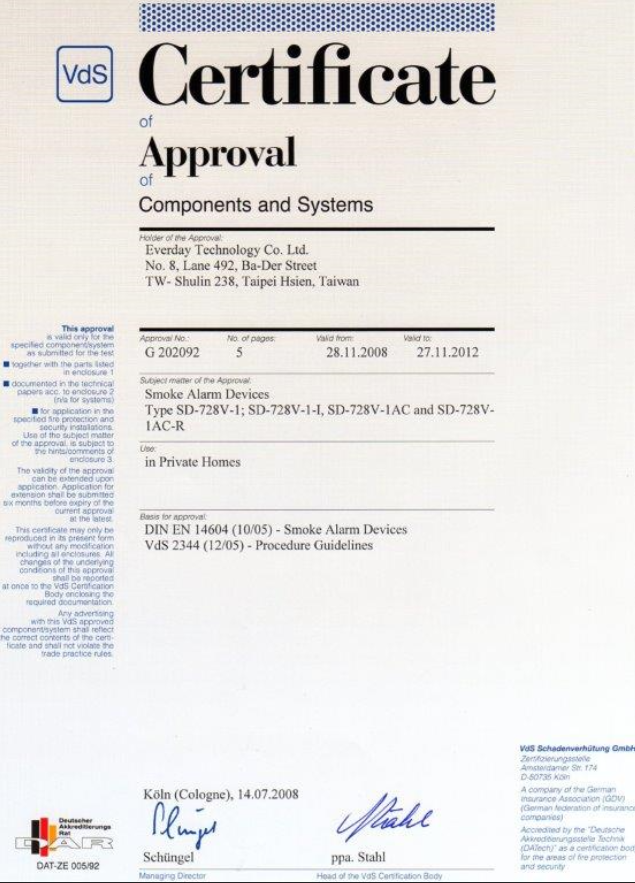

Approvals

 CPR/EN14604

The Range

SD-728

9V battery powered optical smoke detector for residential use

SD-728-I

9V battery powered optical smoke detector with interconnection function for residential use

SD-728-H

9V battery powered optical multisensor (smoke+heat) for residential use

SD-728-A2BI

AC 110/220/230V powered with 9V battery backup and interconnection function optical smoke detector for residential and professional use



 Features and Benefits

  • Photoelectric sensor particularly effective detecting smoldering fires
  • Multisensor is used for detecting a wide range of fires and is highly immune to false alarms
  • Built-in 85 dB/3m local sounder and flashing red LED light will indicate presence of smoke or smoke/heat (SD-728-H)
  • Manual test button helps to verify battery status and alarm operation
  • Automatic self-test
  • Fully supervised for low battery and low sensitivity
  • Unique low-profile detector design easily blends with any décor
  • Easy install, move and maintain
  • Five-year limited warranty

Options

  • Interconnection function allows for up to 38 additional units. If one of the detectors senses smoke, all of the interconnected detectors will also alarm hazardous situation
  • AC110/220/230V and 9V battery powered (battery supplied)
  • Fixed temperature heat sensor is built-in in conjunction with a smoke sensor to further extend detector's capabilities as a smoke detector and increase reliability.

Specification

SD-728

9V batery

Optical smoke detector

SD-728-I

9V batery

Optical smoke detector; interconnection function up to 38 additional units

SD-728-A2

AC110/220/230V

Optical smoke detector

SD-728-A2I

AC110/220/230V

Optical smoke detector; interconnection function up to 38 additional units

SD-728-A2B

AC110/220/230V with 9V battery backup

Optical smoke detector

SD-728-A2BI

AC110/220/230V with 9V battery backup

Optical smoke detector; interconnection function up to 38 additional units

SD-728-H

9V battery

Optical multisensor (smoke and heat)

SD-728-HI

9V battery

Optical multisensor (smoke and heat); interconnection function up to 38 additional units

SD-728-H-A2

AC110/220/230V

Optical multisensor (smoke and heat)

SD-728-H-A2I

AC110/220/230V

Optical multisensor (smoke and heat); interconnection function up to 38 additional units

SD-728-H-A2B

AC110/220/230V with 9V battery backup

Optical multisensor (smoke and heat)

SD-728-H-A2BI

AC110/220/230V with 9V battery backup

Optical multisensor (smoke and heat); interconnection function up to 38 additional units



Smoke Sensitivity

1.1 dB/m

Power Supply

9V battery; AC100/110/220/230/240VAC, 50/60Hz for AC version

Battery Life

At least 18 months under normal conditions with Alkaline Battery

Low Battery Warning

Up to 30 days warning signal

Alarm Indicator

UL listed LED, continuously emitting red light

Operating temperature

0°C to 50°C

Humidity

10 to 85% RH, noncondensing
