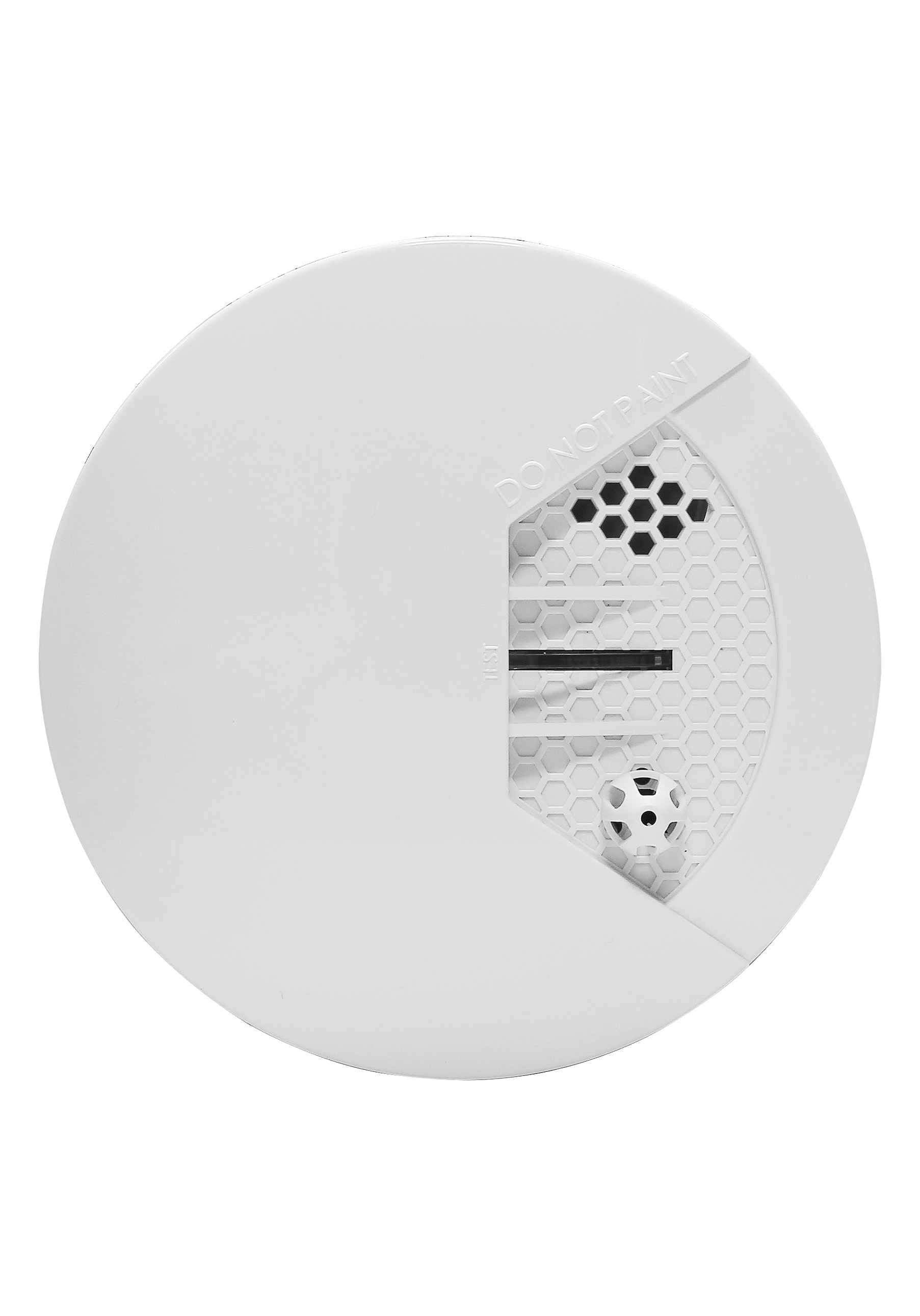

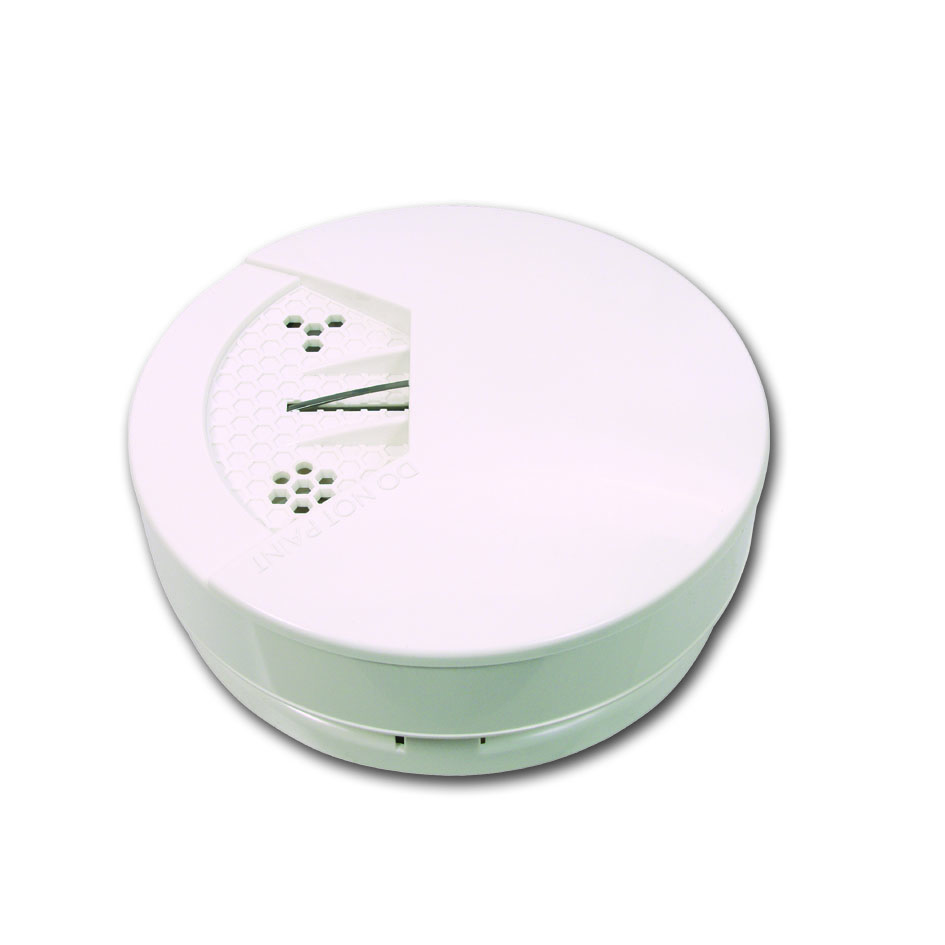

SD360 Series 3V Smoke Alarm

SD360 optical smoke alarm is designed to meet the needs of applications of radio linked operating systems. Not only the alarm offers aesthetically appealing professional design and seamless operation, it also comes with GPIO output to be integrated with RF module. SD360 is fully loaded with features and has a 10-year Lithium battery option.

Approvals

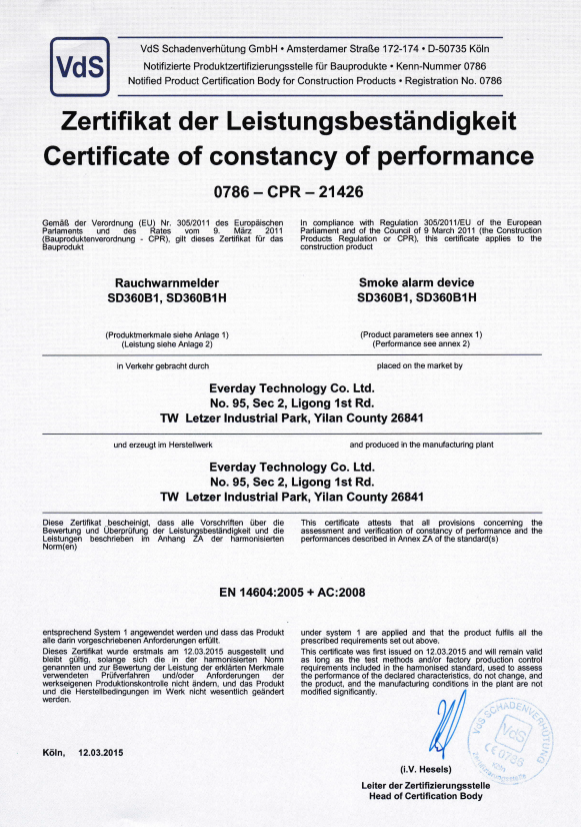

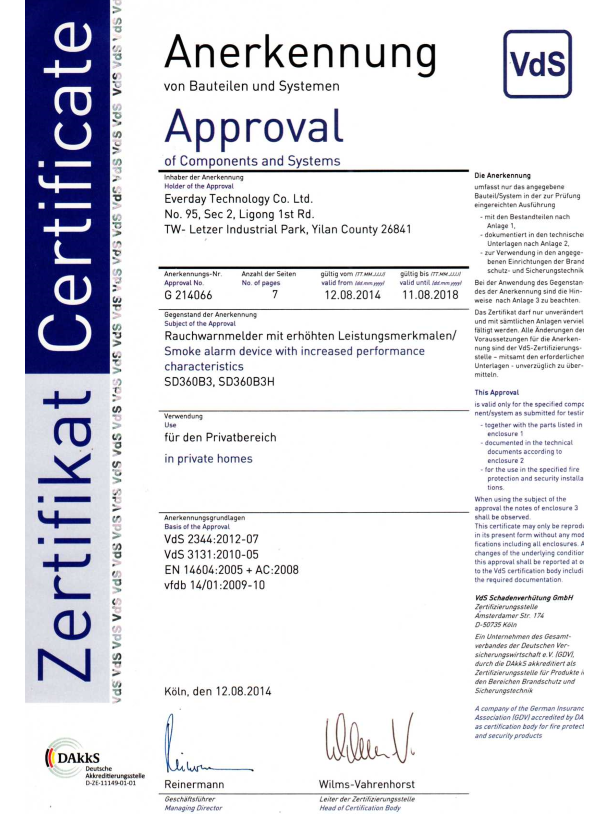

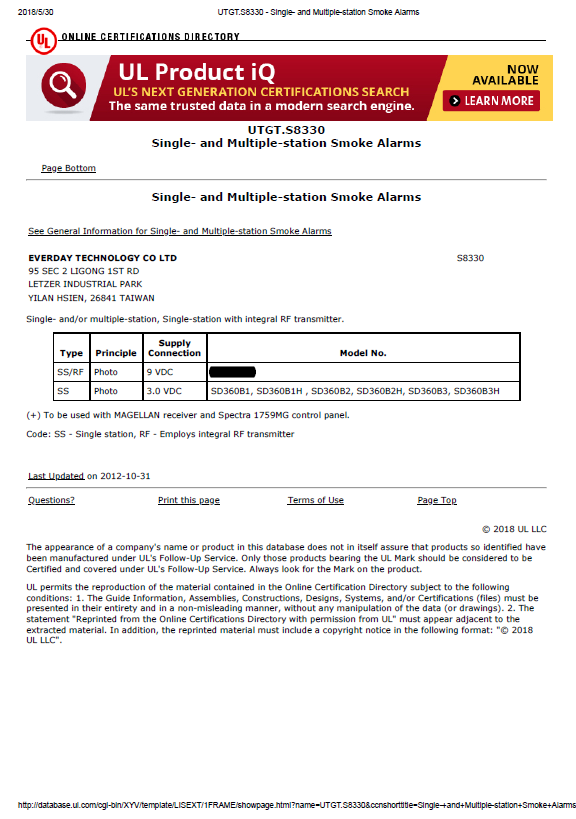

UL217 Listed, UL268 Recognized Component, EN14604:2005

Features and Benefits

  • More options on battery types with longer life time
  • Removable smoke chamber for easy maintenance
  • Extra room to install customer's RF module
  • Self-diagnostic sensor test
  • Silence function
  • Fully supervised for low battery and malfunction
  • Manual test button helps to verify battery status and alarm operation
  • Easy to install, move and maintain
  • Aesthetically appealing professional detector design

Alarm Types

Model     Battery Life Battery Type Description Approval
SD360A1 3 years DL123A/CR123A 3V battery powered smoke alarm, without RF interface EN14604
SD360A3 10 years CR17450E-R 3V battery powered smoke alarm, without RF interface EN14604
SD360B1 3 years DL123A/CR123A 3V battery powered smoke alarm, with RF interface EN14604,UL217,UL268
SD360B1H 3 years DL123A/CR123A 3V battery powered combo smoke / heat alarm with RF interface EN14604,UL217,UL268
SD360B3 10 years CR17450E-R 3V battery powered smoke alarm, with RF interface EN14604,UL217,UL268
SD360B3H 10 years CR17450E-R 3V battery powered combo smoke / heat alarm with RF interface EN14604,UL217,UL268



Specifications Single Station Smoke alarm
Battery Power Rating Voltage: DC 3V lithium battery
Sensitivity & Alarm Pattern UL217 1.31%ft~2.28%/ft ; Temporal Three Pattern
Sensitivity & Alarm Pattern EN14604 0.105 dB/m~0.145 dB/m, Temporal Three Pattern
Heat Sensitivity &Alarm Pattern 57ºC~65ºC ; Temporal three Pattern
Standby Current SD360: max. 15uA RF module: max. 10uA
Start Current Max. 3.5 mA
Alarm Current SD360: max. 100mA      RF module: max. 60mA
Relative Humidity 10% to 85% RH
Temperature Range 0ºC to 49ºC (32ºF to 120ºF)
Dimensions 120mm (D) x 53mm (H)
